Stamping press tonnage is not determined by part size alone. It depends on the total cutting perimeter, material thickness and strength, forming operations, stripping resistance, and the loads occurring simultaneously in every die station.
For blanking and piercing, the theoretical cutting force can be estimated using cutting perimeter × material thickness × shear strength. However, selecting a production press also requires a suitable capacity reserve and checks for energy, off-center loading, bed size, shut height, stroke, speed, and the press tonnage curve.
What Does Stamping Press Tonnage Mean?
Press tonnage describes the maximum force a press is designed to deliver under specified operating conditions. It does not mean that the full rated capacity is available at every ram position or for every type of stamping operation.
A press must supply enough force to complete the operation without overloading its frame, drive, connections, tooling, or bolster. At the same time, excessive press capacity does not correct poor die design, unbalanced loading, insufficient energy, or an incorrect shut height.
Basic Formula for Blanking and Piercing Force
The theoretical cutting force for blanking or piercing can be estimated with the following formula:
Cutting force = cutting perimeter × material thickness × material shear strength
When the inputs use millimeters and newtons per square millimeter:
- Cutting perimeter is measured in millimeters.
- Material thickness is measured in millimeters.
- Shear strength is expressed in N/mm².
- The calculated result is in newtons.
Divide the result by 1,000 to convert newtons to kilonewtons. To obtain an approximate metric tons-force value, divide the kilonewton result by 9.80665.
The cutting perimeter must include every edge being cut during the same press stroke. For a piercing station with several holes, add the circumference of all holes. For blanking, use the complete external profile being separated.
Worked Cutting-Force Example
Consider a part with the following conditions:
- Total cutting perimeter: 600 mm
- Material thickness: 1.2 mm
- Specified shear strength: 300 N/mm²
Cutting force = 600 × 1.2 × 300 = 216,000 N
This equals 216 kN, or approximately 22 metric tons-force. This result represents the theoretical cutting force for that operation only. It is not yet the required press rating.
The calculation still needs to consider other simultaneous stations, forming operations, stripping force, process variation, load distribution, and an appropriate production reserve.
Use the Correct Material Strength
Material strength has a direct effect on the result. Two coils with the same thickness can require different cutting forces if their grades or mechanical properties differ.
Use the shear-strength range supplied by the material manufacturer whenever reliable data is available. If shear strength is estimated from tensile strength, the engineering team should document the assumption and confirm it against the actual material specification.
The upper end of the approved material-strength range should be considered when evaluating the maximum expected load. Using only a nominal or minimum value can underestimate the press requirement.

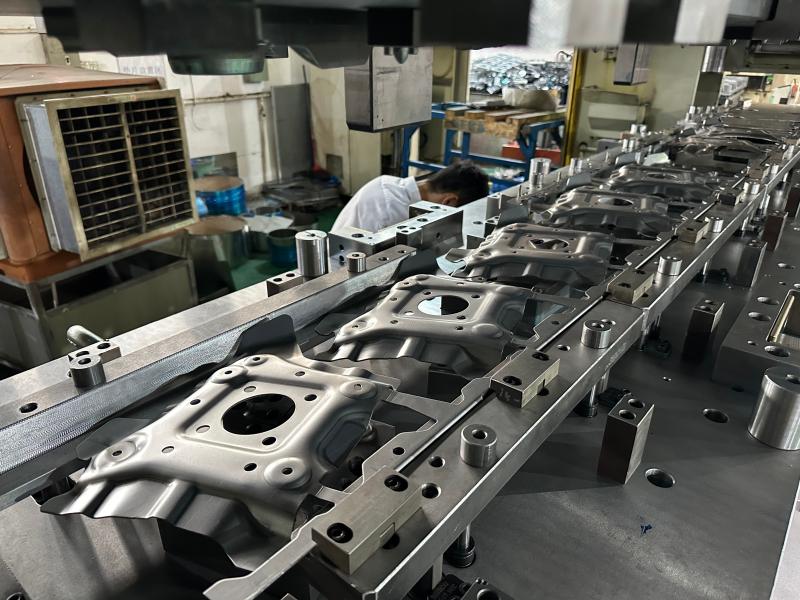

How to Calculate Load for a Progressive Die
Once a progressive die reaches steady production, several stations operate during every press stroke. One station may pierce holes while other stations trim, bend, draw, restrike, or cut off completed parts.
The press calculation must therefore include the loads occurring in all active stations. Simply calculating the final blanking perimeter is not sufficient.
A practical load schedule should identify:
- Cutting force at every piercing, notching, trimming, and cut-off station
- Bending and forming force at each forming station
- Drawing, restriking, embossing, or coining loads
- Pressure-pad, binder, or blank-holder force
- Stripping force required to release material from punches
- The ram position at which each load occurs
The load timing is important because individual operations may reach their peak forces at different ram positions. The engineering team should build a load-versus-stroke estimate instead of assuming every theoretical peak always occurs at exactly the same point.
The station sequence and pitch established in the progressive die strip layout provide the starting information for this analysis.
Cutting Force Is Only Part of the Total Load
Bending Force
Bending force depends on material strength, thickness, bend length, die opening, bend radius, and whether the operation uses air bending, bottoming, wiping, or another method. A generic cutting-force formula should not be used for bending.
Drawing Force
Deep-drawing force is affected by blank size, punch diameter, material properties, drawing ratio, friction, lubrication, die radius, punch radius, and blank-holder pressure. Severe or multi-stage draws should be evaluated using a dedicated calculation, forming simulation, or validated process data.
Coining and Restriking Force
Coining, flattening, sizing, and restriking can create high loads near the bottom of the stroke. These operations may control press selection even when their working area appears small.
Stripping Force
After cutting, the material grips the punch because of elastic recovery, friction, burr formation, lubrication, and local deformation. The stripper must overcome this resistance as the punch withdraws.
Stripping force varies with the material, clearance, punch geometry, penetration, and number of cutting features. It should be estimated separately rather than hidden inside the cutting-force result.
Why a Capacity Reserve Is Necessary
The calculated theoretical load should not be equal to the selected press rating. Production conditions vary because of material-property changes, thickness tolerance, lubrication, tool wear, alignment, temperature, clearance, and setup conditions.
An appropriate reserve should be selected with the press manufacturer and tooling engineer. There is no single percentage that is correct for every blanking, drawing, coining, progressive, or transfer application.
The reserve must not be used to compensate for an uncertain process. If the load estimate is incomplete, the forming sequence and die design should be reviewed before press selection.
Check the Press Tonnage Curve
A mechanical press generally develops its rated capacity within a specified distance above bottom dead center. The available force may be lower earlier in the stroke.
This matters when a die begins drawing or forming high above the bottom position. A press may have enough rated tonnage but still be unsuitable if the required force occurs outside its approved capacity curve.
The tool builder should compare the estimated load at each ram position with the manufacturer's press curve. Hydraulic and servo presses have different force, speed, and energy characteristics and must be evaluated using their own specifications.
Other Press Requirements to Verify
| Press Parameter | Why It Matters |
|---|---|
| Energy capacity | The drive and flywheel must supply enough energy at the intended production speed. |
| Off-center load | An unbalanced die can tilt the slide, increase guide wear, and reduce part consistency. |
| Bed and bolster size | The die must fit with adequate support, clamping space, feeding access, and scrap clearance. |
| Shut height | The press adjustment range must match the closed height of the production die. |
| Stroke length | The tool needs enough opening for feeding, part transfer, lifters, and safe scrap release. |
| Stroke rate | The target speed must be compatible with feeding, forming, lubrication, sensors, and material control. |
| Press deflection | Excessive deflection can change die clearance and produce uneven cutting or forming. |
| Reverse load | Snap-through after cutting can affect the press, tooling, vibration, and noise. |
Common Tonnage Calculation Errors
- Using the part area instead of the cutting perimeter for blanking
- Forgetting internal holes, slots, notches, or carrier cut-off edges
- Using tensile strength without documenting how shear strength was estimated
- Calculating only one station of a multi-station die
- Ignoring bending, drawing, restriking, coining, and stripping loads
- Assuming the press delivers full rated capacity throughout the stroke
- Ignoring unbalanced loading across the press bed
- Selecting a press by tonnage without checking energy and production speed
- Using nominal material properties instead of the approved maximum range
Information Required for Press and Die Evaluation
Reliable stamping die design and press selection require more than a basic part drawing. The engineering package should include:
- 3D part model and dimensioned 2D drawing
- Material grade, thickness, strength range, and coating
- Annual volume and target strokes per minute
- Proposed strip layout or transfer process
- Cutting perimeter at each station
- Forming, drawing, restriking, and coining operations
- Available press model and manufacturer data
- Bed size, shut height, stroke, speed, energy, and tonnage curve
- Feeding, transfer, lubrication, and scrap-removal requirements
How Should the Calculation Be Verified?
The initial estimate should be reviewed during DFM and updated after the strip or process layout is approved. Forming simulations can provide additional information for complex drawing and restriking operations.
During die tryout, a press load monitor should be used to record the actual load signature. The measured curve can reveal load imbalance, unexpected peaks, changing stripping resistance, and differences between the estimate and the physical process.
Final production approval should confirm that the press operates within its permitted force, energy, and off-center-load limits at the intended stroke rate.
Conclusion
For basic blanking and piercing, stamping force begins with cutting perimeter × material thickness × shear strength. The final press decision must then include all simultaneous die stations, forming loads, stripping resistance, process variation, and the press manufacturer's operating limits.
A press with sufficient rated tonnage may still be unsuitable because of its capacity curve, energy, bed size, shut height, stroke, deflection, or load distribution. Press selection should therefore be completed together with the die process review.
