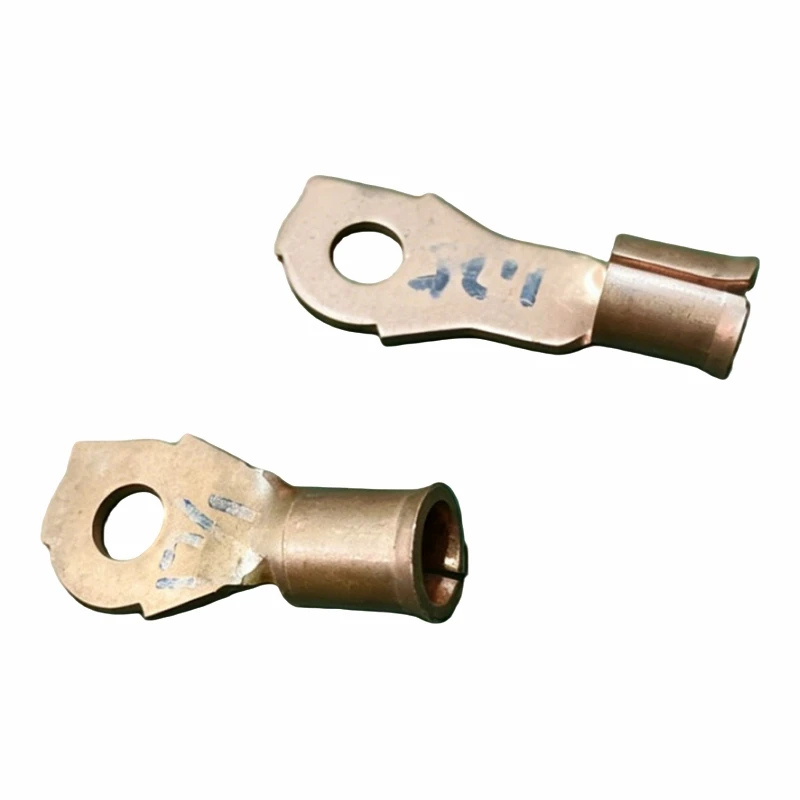

Connector Stamped Parts

Copper at 1.5 mm behaves differently from thin terminal strip. The cutting load is higher, bend radii need more space, and springback may affect formed legs or contact faces. For this copper connector, the die should support the blank close to the working area to reduce tilt and edge deformation. Punch-to-die clearance must balance cut quality with tool life. Where a connector carries current, the drawing may also define flat contact zones that should not be heavily marked during forming. This is relevant to connector stamped parts for industrial assembly.

Electrical stampings often combine conductive function with mechanical retention. A connector may need mounting holes, locking tabs, coined areas, or formed offsets, each with different tolerance priorities. Inspection therefore focuses on the dimensions that control mating and contact rather than treating every feature equally. Although precision metal stamping for medical devices is a separate application field, the same disciplined approach to traceable dimensions and controlled burrs can be useful when connector parts have critical functional surfaces.

A project review should include copper grade, temper, surface treatment, current or contact requirements, annual demand, and any mating component data. Changdong can evaluate projects from buyers looking for a connector stamped parts manufacturer in China. For a connector stamped parts OEM supplier program, support can cover tooling design, die manufacture, sample production, and dimensional checks. The final operation sequence is decided from the actual part geometry because thick copper parts may be progressive, transfer-fed, or produced in separate stages. Where contact resistance is important, the buyer may also specify plating thickness, acceptable surface marks, and inspection methods. These requirements should be fixed before tooling details are finalized. For thicker copper, the engineering review may also consider corner cracking, local thinning, and the effect of repeated forming on contact geometry so that later adjustments are limited.
