Precision Stamping Tooling

A precision stamping tool should establish the functional datums before the operation sequence is fixed. Hole position, edge distance, bend location, and contact surfaces need one consistent reference system in the 2D drawing, 3D drawing, and checking fixture. For Precision Stamping Tooling, locating too many features at once can make adjustment difficult; a smaller number of reliable locators usually gives clearer results. The design team also reviews which dimensions are created by cutting, which depend on material flow, and which should be set in a final calibration operation.

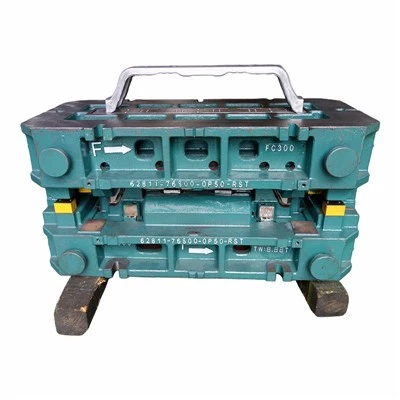

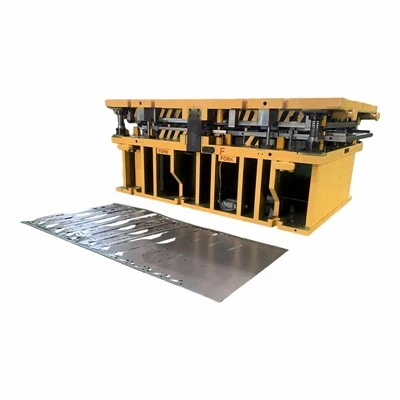

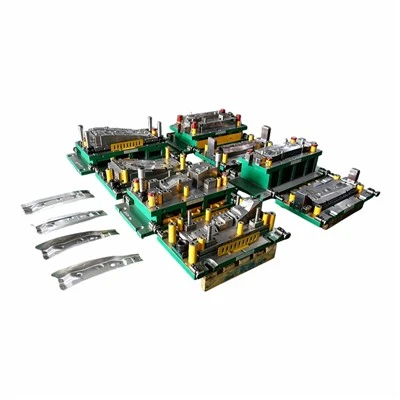

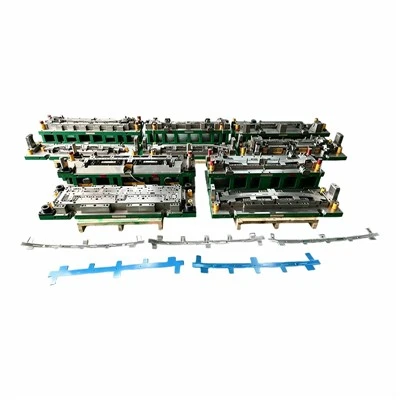

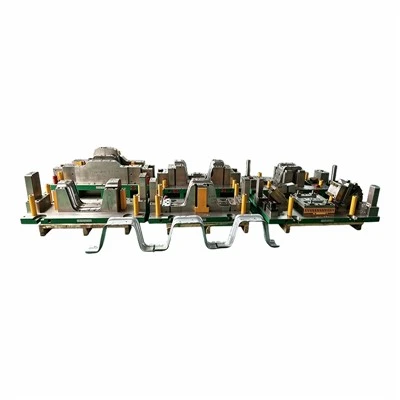

Precision die tooling benefits from replaceable punches, die buttons, and forming inserts in areas that will be corrected during tryout. Precision press tooling also needs controlled guide clearance and a plate stack stiff enough to prevent small dimensional changes under load. A high precision stamping die is not defined by tight tolerances alone; service access, repeatable die clamping, and stable material support are equally important. Where precision metal tooling uses coated sheet, polished contact surfaces and the correct cutting clearance help limit galling, burr growth, and unwanted tool marks.

The first samples from Precision Stamping Tooling should be measured against the same datum scheme used in design. Rather than correcting every dimension at once, the team separates feed error, springback, cutting variation, and locator error. Results from the first-off, intermediate, and final parts are recorded so that a change at one station does not hide another issue. Gauge repeatability, burr direction, flatness, profile, and assembly fit can be added to the report according to the customer's drawing and die technical standards.
