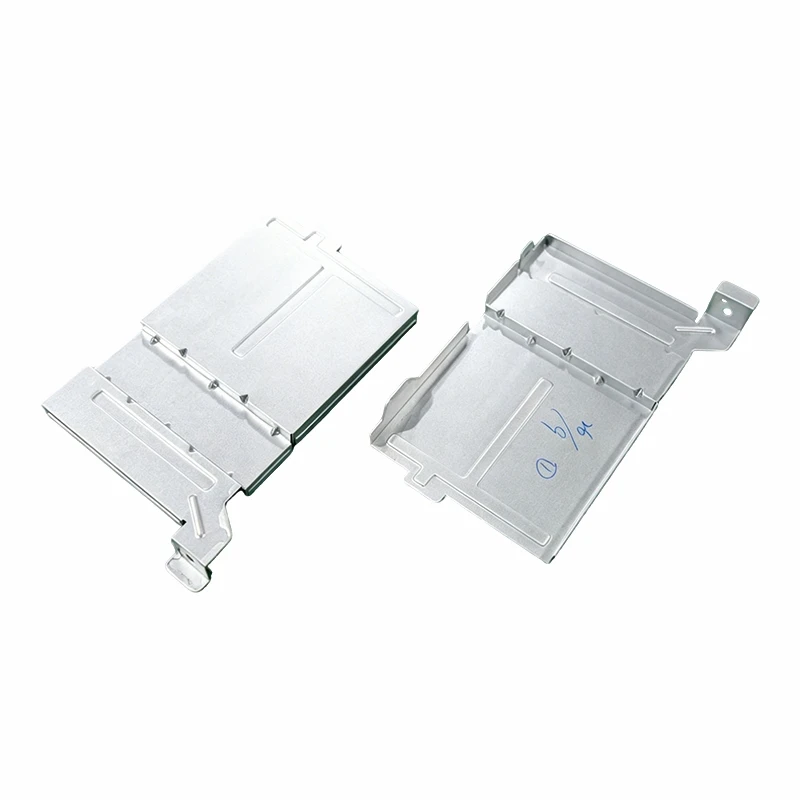

Appliance Metal Brackets

A thin bracket can look simple while requiring careful station planning. the component often include tabs, holes, return bends, or clip-like features that must stay aligned with the assembly datum. In a 15-station progressive die, the carrier must hold the part securely without restricting material movement around formed areas. Pilot positions should be selected where the strip remains stable, and cutting loads should be distributed so the carrier does not twist. For complex sheet metal parts, intermediate forming steps may be preferable to one aggressive bend because they reduce local marking and improve angle repeatability.

The 0.4 mm galvanized sheet is easy to distort after separation. the component should therefore be checked for flatness, hole spacing, flange angle, and retention features. If the bracket works like a sheet metal screw clip, the opening width and spring response may be more important than the overall outline. Burr orientation should be planned around assembly access and nearby wires or plastic components. During continuous tryout, the team should compare parts from different points in the run to confirm that punch wear, strip lift, or feed variation does not gradually change the result.

For tooling review, buyers can provide CAD files, material specification, critical-to-function dimensions, annual volume, and assembly information. the component used for clipping, grounding, or positioning may need different inspection priorities, so the part function should be explained clearly. Changdong can review strip layout, station sequence, and sample requirements for customers searching for an appliance brackets manufacturer in china or an appliance brackets oem supplier. Press specifications and preferred coil conditions are also useful when confirming the suitability of the progressive tooling concept.

For appliance brackets for industrial assembly, functional testing may be more useful than checking every dimension independently. A bracket or clip should be installed with its intended screw, tab, or mating part so that retention, alignment, and access can be reviewed together.
