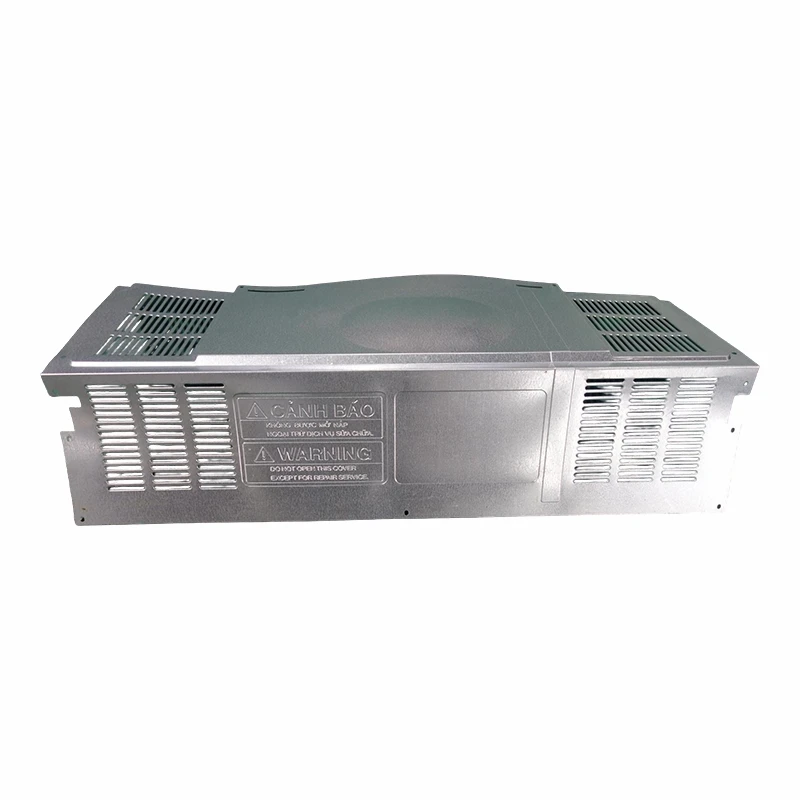

Oven Stamped Parts

The combination of a broad blank and 0.27 mm thickness creates a high risk of wrinkling, oil canning, and edge damage. the component should therefore be supported over a wide area during forming and transfer. Blank-holder pressure must be sufficient to control material flow without imprinting the galvanized surface. Small changes in lubrication or blank position can affect the final contour. Even when the part appears simple, the process should account for thermal expansion, fastening locations, and contact with insulation or heating-related assemblies. Small sheet metal parts attached to a larger panel may also depend on consistent hole and tab geometry.

Five single-operation dies allow the work to be divided into manageable stages. A typical route may separate blanking, shallow forming, piercing, flange work, and final sizing, but the actual sequence must follow the drawing. the component should be checked after every stage for local buckling and loss of flatness. Because the material is easy to deform by hand, loading nests and part removal methods should not rely on unsupported edges. Sheet metal parts components with visible or heat-exposed surfaces may also need controlled deburring and clean handling before assembly.

Buyers should provide part geometry, visible-surface requirements, operating temperature context, coating information, and assembly datums. For the component, the engineering review should identify areas that contact insulation, heaters, fasteners, or enamelled panels. Changdong can assess the proposed forming route and inspection needs based on those requirements. Customers looking for an oven stamped parts manufacturer in china or an oven stamped parts oem supplier can also specify packaging, edge safety, and flatness criteria so that trial samples are evaluated under realistic handling conditions.

For oven stamped parts for industrial assembly, edge safety and heat-related assembly clearance should be agreed before production. Thin panels can be dimensionally acceptable yet still create handling problems if a trimmed edge is sharp or a broad unsupported area deforms during installation.
