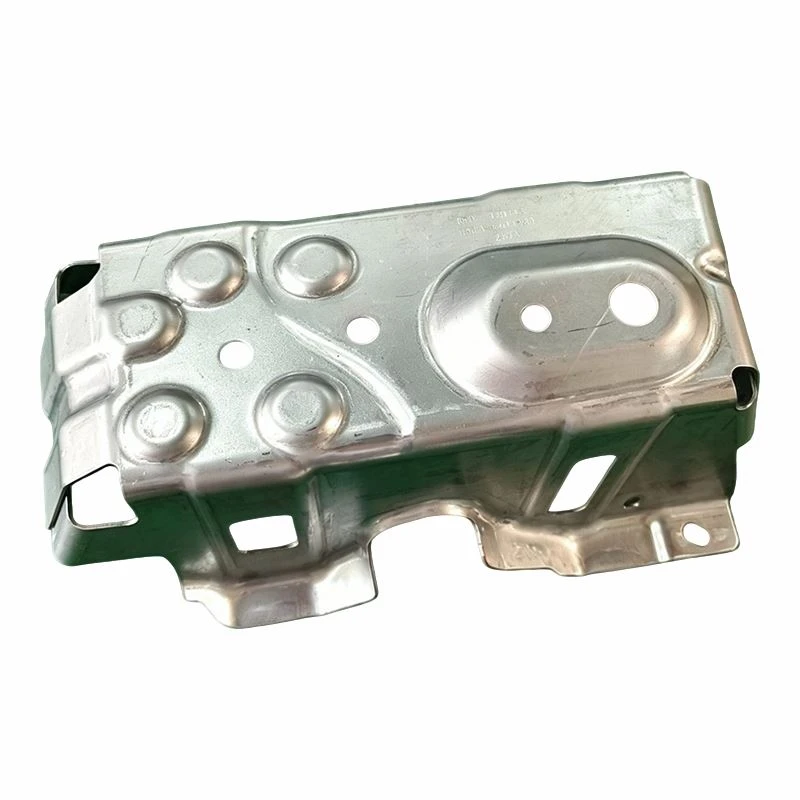

Heat Shield Stamping Parts

Heat shields frequently combine shallow contours, embossed stiffening areas, mounting tabs, and clearance features around hot components. Dividing the work across seven dies allows engineers to manage those features without forcing excessive deformation in one stroke. For Heat Shield Stamping Parts, the sequence should protect the galvanized surface while controlling local springback from the dual-phase substrate. Piercing is often placed after major forming where hole position depends on the final contour, although the correct order must be confirmed from the drawing and datum strategy.

A heat shield may be thin in appearance yet still requires disciplined edge management. The finished parts should leave the tool without sharp exposed burrs, unstable tabs, or distortion around mounting points. Surface marks may be acceptable in hidden zones but not where they interfere with assembly or insulation layers. Buyers searching for a stamping parts supplier should identify visible areas, burr direction, and any post-stamping coating or insulation process. The phrase sheet metal parts in car covers many components, so inspection criteria should remain specific to thermal-shield function.

Before quotation, send the part drawing, material standard, coating designation, annual volume, and expected installation method. Changdong can review projects for buyers looking for a heat shield stamping parts manufacturer in China. For programs requiring a heat shield stamping parts OEM supplier, the review can include sample quantities, checking fixtures, packaging, and spare wear components. Continuous improvement during tryout should focus on real defects such as contour shift, tab angle, and coating damage rather than making cosmetic changes that do not affect service performance.

During tryout, attention should stay on contour stability, mounting-tab position, and coating condition over repeated cycles. Heat-shield pieces can appear acceptable when placed freely but shift once fastened at several points. A simple assembly fixture or mating check therefore gives useful feedback alongside dimensional inspection and helps guide final die corrections.
