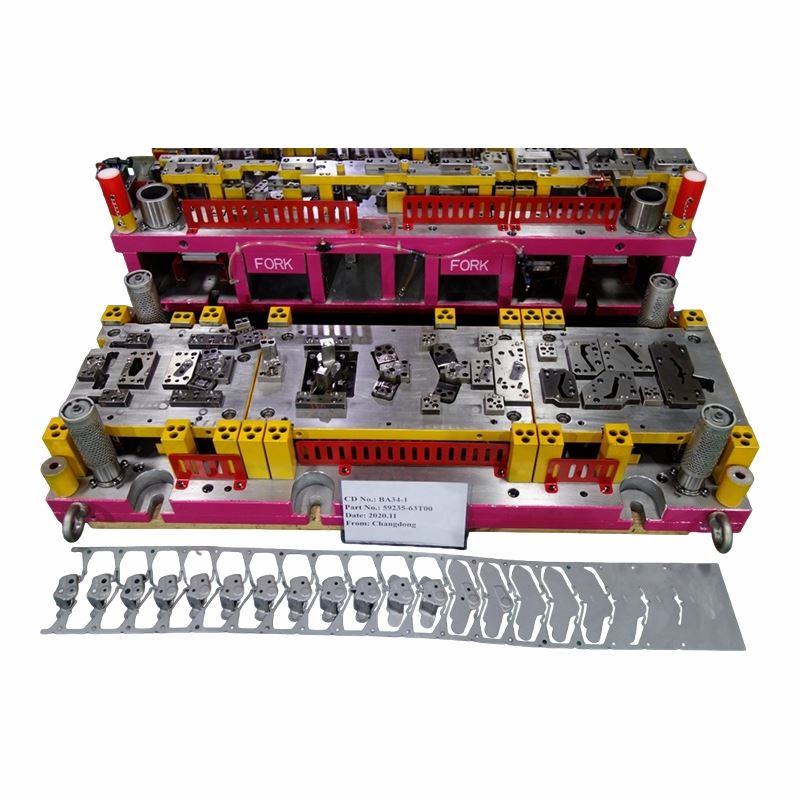

Industrial metal press tooling begins with the part function and production target. The operation route may use one die or several, but each stage needs a defined input, output, and datum. The Metal Press Tooling study should identify forming risk, cutting sequence, part handling, and the press window before detailed steel design starts. A metal press tooling system that is chosen only from annual volume can overlook material behavior, assembly fit, or access limitations that later dominate tryout.
Metal press tooling components include the die set, working inserts, guide parts, pressure elements, lifters, springs, sensors, safety devices, and scrap equipment. Their specifications should follow load and service requirements. Sheet metal press tooling can use MISUMI standard parts, with PUNCH INDUSTRY, SANKYO OILLESS, Danly, Dayton, or FIBRO alternatives where the customer's standards and dimensions permit. The production metal press tooling bill of materials should record die steel, heat-treatment hardness, coatings, approved brands, and spare quantities so replacements remain traceable.
The Metal Press Tooling acceptance plan should cover more than a final good sample. Tryout records need the press setup, die clamping, shut height, feed or transfer settings, lubrication, and the inspection datums used for measurement. Engineers review surface or profile, trimming line, hole position, flange angle, burrs, tool marks, dropping off, and scrap flow according to the part. Setup sheets, maintenance instructions, spare lists, and sample reports make it possible to return the tool to its approved condition after service.
For a quotation, send the press specification and die technical standards along with the 3D drawing and 2D drawing, then add material data, annual volume, and acceptance requirements. Dongguan Changdong Tool & Die Co., Ltd. can support die design, CAE simulation, CNC machining, WEDM, EDM, grinding, drilling, die assembly, die clamping, tryout, sample stamping, and inspection. The final scope should identify which services, samples, and documents are required for the specific project.
Certified Manufacturing and Patent Support
Metal press tooling is normally purchased as a complete engineering and manufacturing service. The supporting certificate module can include ISO 9001, applicable IATF 16949 documents, export operation qualification, high-tech enterprise recognition, and patents covering press-tool structures, die assemblies, workpiece positioning, or automated processing devices.
This evidence helps clarify the supplier's ability to manage design, machining, assembly, tryout, inspection, and handover under controlled procedures. For Metal Press Tooling, it also shows that the company's tooling capability is reinforced by documented R&D activity rather than only by equipment capacity.
