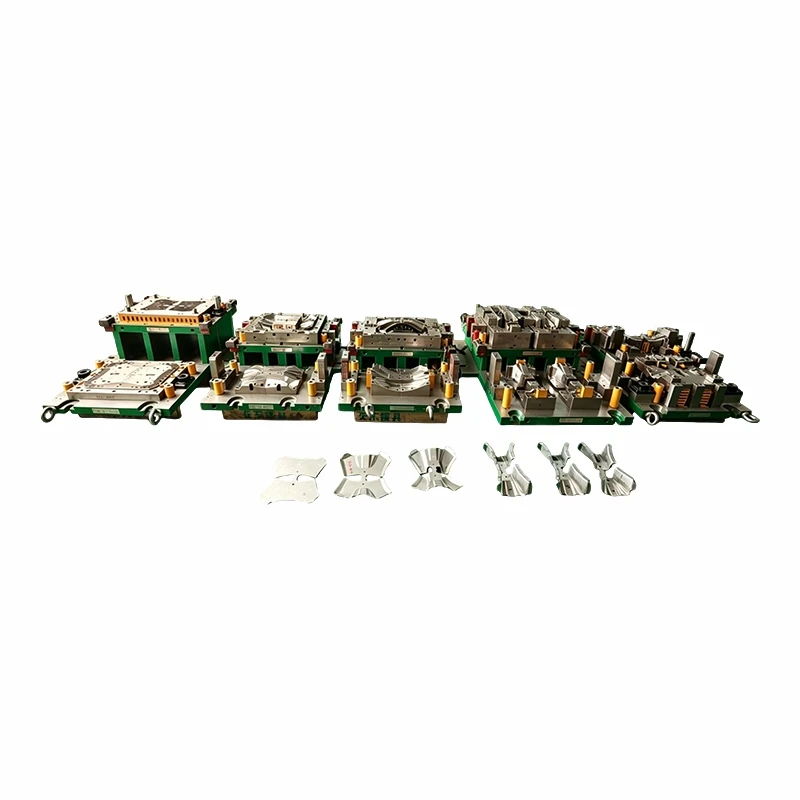

Metal Stamping Die

A metal stamping production die for soft aluminum needs a balanced pressure system. Too little restraint can allow wrinkles, while excessive restraint may stretch or mark the sheet. The Metal Stamping Die sequence should use generous transitions and avoid unnecessary reverse bending. A metal forming die may need draw beads, local pressure adjustment, or a restrike operation, but those choices depend on the part shape. Because no part geometry has been confirmed, the tooling concept should remain conditional until the 3D data and functional datums are reviewed.

A metal press die for 5182-O benefits from polished contact areas and a lubrication plan that does not contaminate downstream processes. Aluminum pickup on a punch or radius can create tool marks and gradually change dimensions. For a stamping die for metal parts, trim clearance, punch support, and burr direction are set from the actual material and edge requirement. If holes are close to formed walls, they may be pierced after the main profile has settled so springback does not move the hole position out of tolerance.

The Metal Stamping Die is tried at low speed with attention to material flow, surface or profile, flange angle, trimming line, hole position, and part dropping off. Engineers compare samples from each relevant stage instead of polishing the final tool until the symptoms disappear. A production stamping die should also have replaceable wear inserts, accessible lubrication points, and scrap routes that do not rub the finished part. Any springback correction is documented so later service work can reproduce the approved condition.
