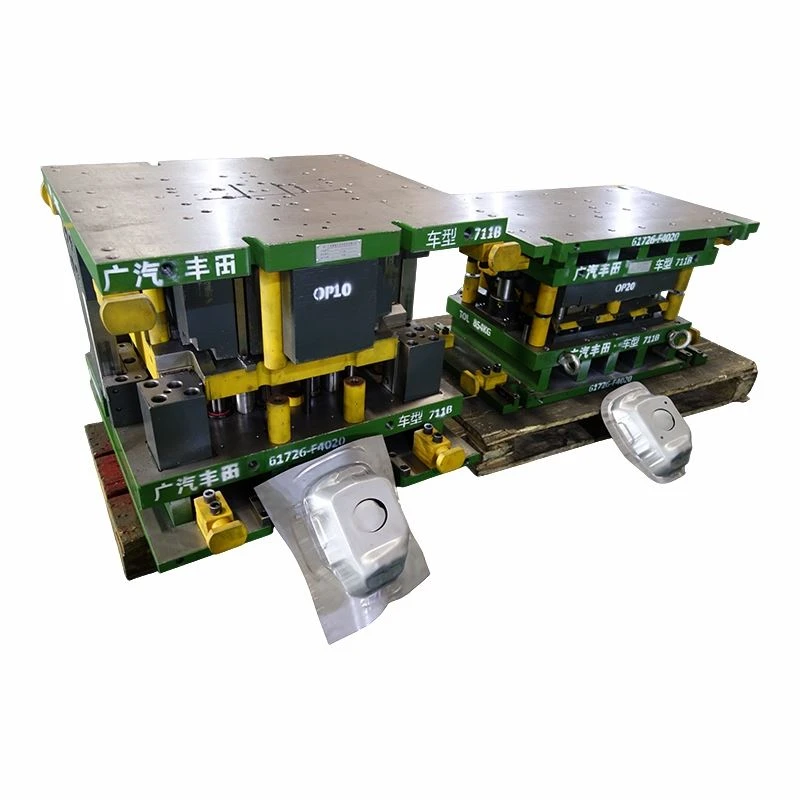

Punch Die

In a punch and die set, clearance is selected from material grade, thickness, burr direction, and the required edge condition. Too little clearance raises load and accelerates chipping; too much clearance enlarges rollover and burr. A metal punching die also needs enough punch guidance to prevent side load, particularly for small diameters or long narrow slots. Hole position should be tied to a clear datum scheme so inspection does not depend on inconsistent outside edges.

Punch die components are not all given the same steel or hardness. Working punches and die buttons may use hardened tool steel, while holders, backup plates, strippers, and guides are selected for stiffness and access. A punch die set should let maintenance staff replace wear items without disturbing the entire alignment. Standard components can follow the buyer's approved brand list, and die clamping points should remain clear of scrap routes and sensors.

Slug pulling, double hits, and chips trapped on the surface are common causes of tool marks. The stripper force must release the stock cleanly, while vacuum, air, or mechanical ejectors are chosen according to slug size. Where the blank or part drops through the die, the dropping-off path should be visible and free of ledges. Embossed sheet material can be used on a chute to improve sliding and reduce bridging. On high-volume work, punch wear can be tracked by burr growth rather than a fixed calendar interval. A first-off sample after sharpening should be compared with the approved part because punch length changes can affect shut-height settings and stripper travel. Spare punches should be identified to their drawing revision.

Begin with the press specification and the applicable die technical standards. Add the current 3D drawing and a dimensioned 2D drawing, then identify material condition, annual volume, required burr direction, and inspection method. These inputs allow the cutting clearance, guide arrangement, shut height, and service plan to be reviewed before manufacturing.
