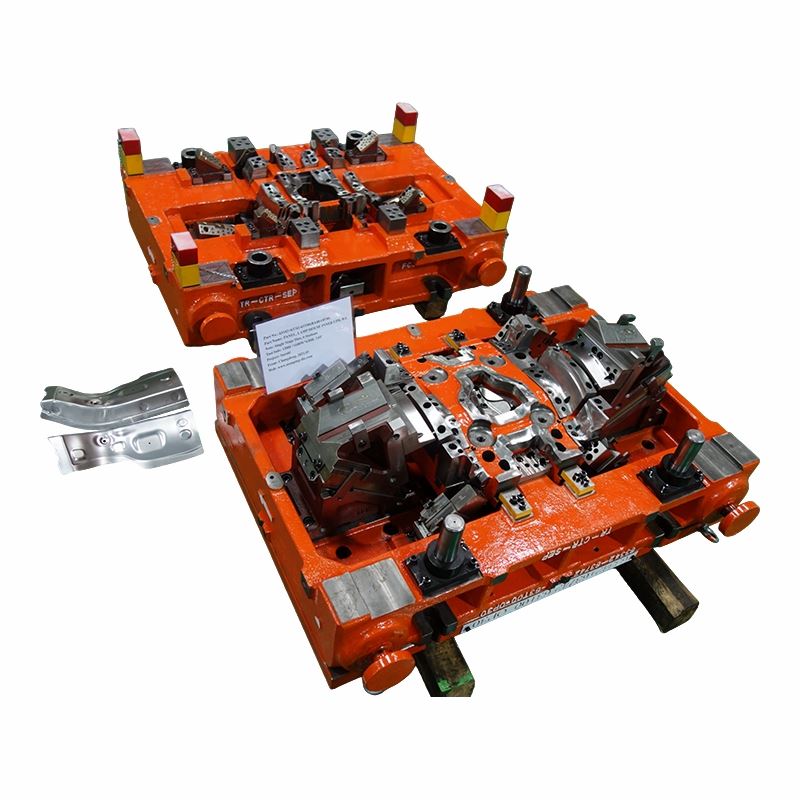

Trimming Die

A metal trimming die should locate the part from stable formed datums before the cutting steels engage. If the nest rests on a springback-sensitive surface, the trimming line can move even when the cutter is correct. The trimming punch and die geometry must follow the actual profile and provide relief for the separated edge. Cam trimming may be required where a vertical cut cannot reach a side wall or return flange.

Trimming die components are commonly divided into serviceable segments so local wear or a late edge change does not require replacing the full perimeter. Insert joints are kept away from critical corners where possible, and backup support is provided beneath high-load areas. Clearance is selected from material type, thickness, edge requirement, and whether the operation trims a single sheet or a folded section. The steel and hardness of cutting inserts can differ from the nest and pressure components. Section joints should be dowelled and supported so sharpening does not create a step in the edge. A controlled regrind allowance also helps preserve the intended profile over repeated maintenance cycles.

A trimming die set needs a scrap plan before machining begins. Long rings, narrow strips, or hooked offcuts can bridge between die sections and return to the working area. Scrap cutters, positive pushers, and open chutes are arranged so each piece leaves in a predictable direction. Embossed sheet on the chute gives a smooth sliding path, while a pneumatic cylinder-driven vibrator can improve discharge when light scrap tends to remain in the die.

Tryout checks include trimming line, burr direction, edge wave, surface dents, profile movement, and tool marks near the nest. For engineering review, match the press specification and die technical standards to the current 3D drawing and approved 2D drawing. The trim tolerance and inspection datum system should be stated separately. The approved edge sample should remain available for comparison after sharpening.
