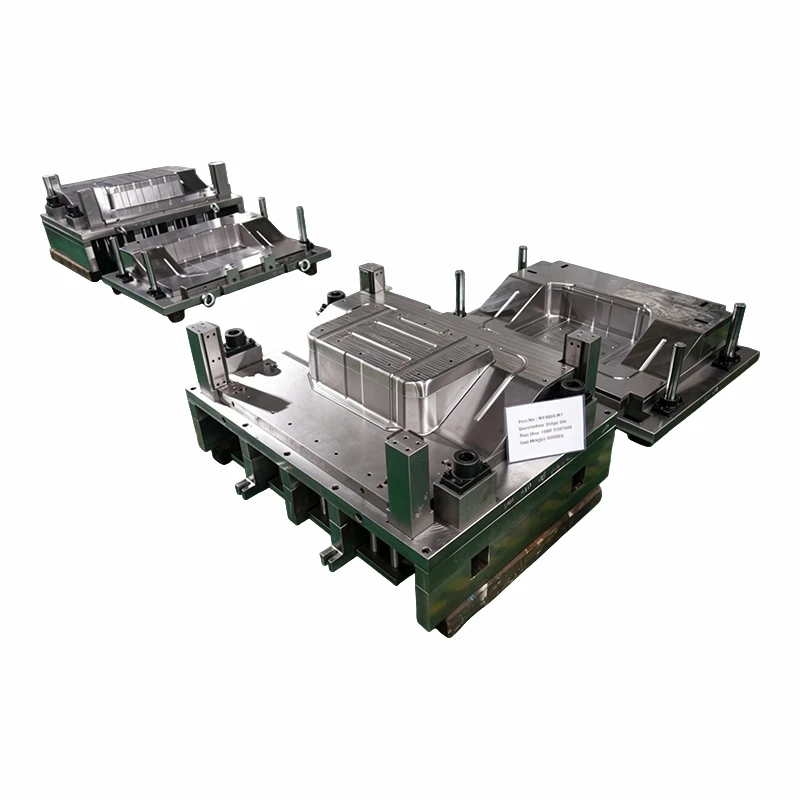

Deep Drawing Die

Deep drawing die design begins with the draw ratio, corner radii, wall depth, and the amount of material available around the flange. The term dies for drawing covers many geometries, but the same questions recur: where should the blank be restrained, where can it feed, and which area is likely to thin first? Draw beads, local relief, and variable blank-holder pressure can be used to control wrinkles without locking the sheet so tightly that it tears.

Deep drawing dies for a shallow shell may complete the profile in one stroke, while deeper parts can require a first draw, redraw, restrike, trim, and pierce sequence. A deep drawing die set should support the blank before the punch contacts it and maintain alignment throughout the stroke. Binder travel, cushion force, shut height, and press energy are checked together. If these items are reviewed separately, the tool may fit the press but still run outside its stable process window.

Working surfaces are polished in the actual material-flow direction. Insert joints, venting, and lubricant paths are positioned so they do not create tool marks on visible areas. During tryout, the team checks wall thinning, wrinkling, split location, bottom shape, trimming line, and springback after the part is released. CAE simulation can help identify risky zones before machining, but trial parts and section measurements remain necessary for final correction. Blank trials are often used to refine the starting outline. A small change to one corner or lobe can improve feed in a difficult wall without adding pressure across the complete binder. Those changes should be recorded so future material lots can be compared against the approved blank.

The press specification and die technical standards should be reviewed alongside the 3D drawing and its dimensioned 2D drawing. Material grade, thickness tolerance, surface requirement, annual volume, and allowable thinning are also needed to choose the draw route and inspection plan.
