Gang Die

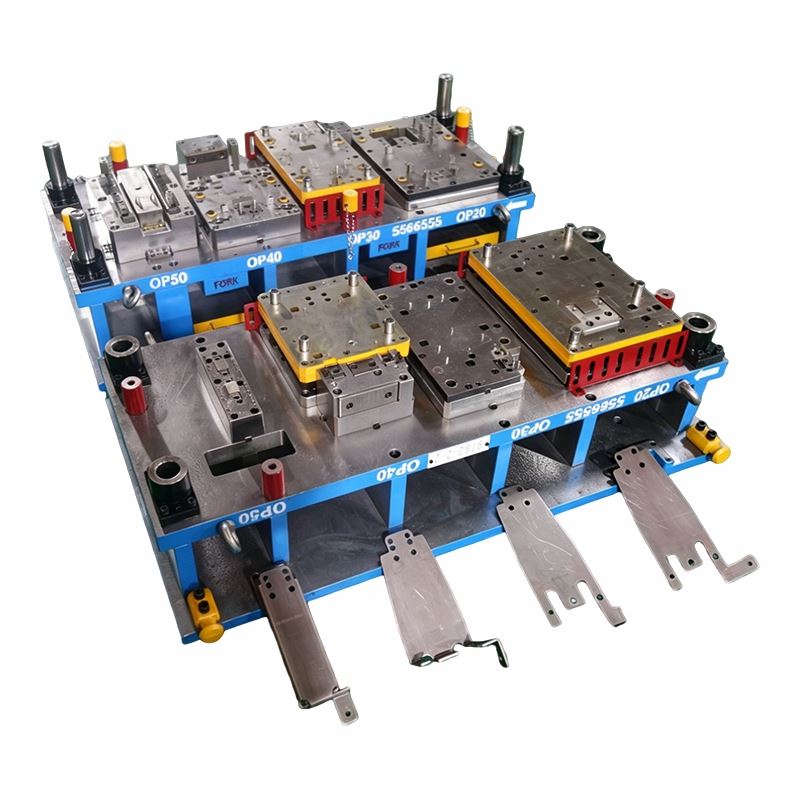

A stamping gang die can pierce several locations, blank more than one component, or combine cutting and simple forming at adjacent positions. Unlike a progressive die, the workpieces do not have to advance through a long station sequence. The layout should show how each blank or strip is located, where finished parts drop, and how an operator or feeder keeps the stock against the correct stops. This makes the process easier to understand and reduces the chance of loading the wrong position.

The press does not only see total tonnage; it also sees where that load is applied. A gang press die with heavy cutting on one side can tilt the slide or wear guides unevenly. Cutting and forming loads should be distributed around the center of pressure, with enough plate thickness beneath concentrated work. A gang die set also needs clear scrap paths between operations. If two slugs or parts share a chute, their shapes should not interlock and stop the flow. Where parts have different cutting loads, the heavier operation may be divided or moved closer to the press center. This is checked during design rather than left for tryout to solve.

Gang die components are best arranged in replaceable groups. Punches, die buttons, form inserts, strippers, and stops should be removable without dismantling unrelated areas. MISUMI or another approved standard component brand can be used where dimensions and load ratings match the customer's die technical standards. Embossed sheet material gives part and scrap chutes a smoother sliding surface, and a pneumatic cylinder-driven vibrator can be added where light scrap tends to collect.

For quotation, submit the 3D drawing and its controlled 2D drawing, then state the press specification and die technical standards that govern the build. Expected volume, feed method, part separation, and inspection datums determine whether a gang layout is genuinely simpler than separate tools.
