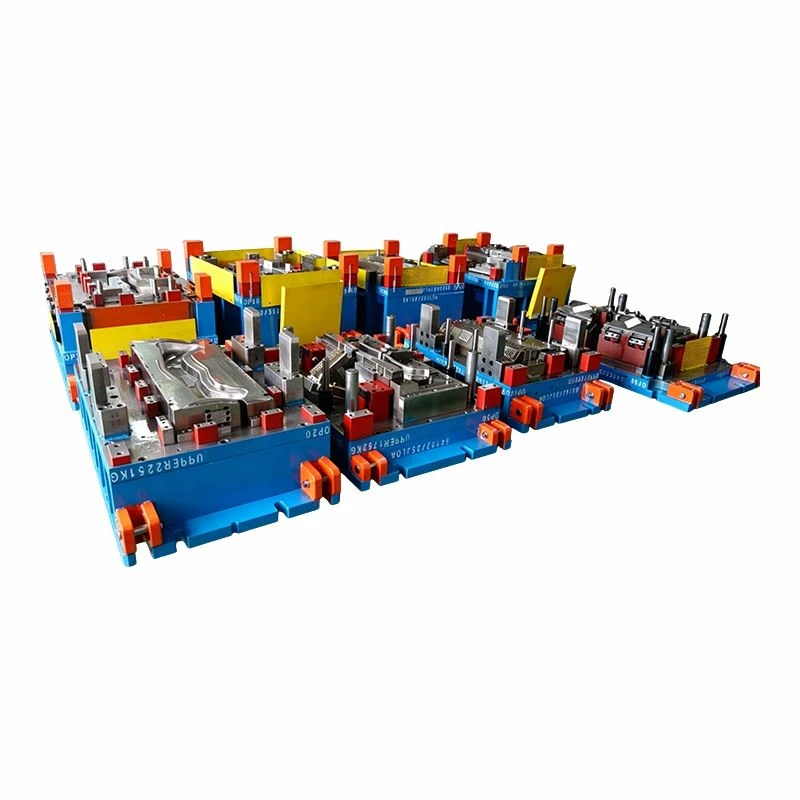

Transfer press tooling should be timed from pickup to landing, not only from press stroke to press stroke. The part needs a stable gripping area, predictable orientation, and clearance over the lower tool before the next press closes. A transfer production press tool may use sensors for part presence and finger position, but the nests must still locate the part mechanically. Line balance is reviewed so one difficult operation does not create repeated stops or rushed handling. Acceleration and deceleration matter because a flexible panel can shift even when the final landing position appears correct at low speed.
Transfer press tool components include forming inserts, locators, lifters, pressure elements, cams, guide parts, and transfer-side brackets. Their arrangement should leave direct access to common wear items. Changdong commonly works with MISUMI standard components; PUNCH INDUSTRY, SANKYO OILLESS, or Dayton parts can be considered when the customer standard and load ratings support the substitution. Die steel and heat-treatment hardness are selected by duty, with cutting, drawing, and support sections treated as different service conditions.
For a sheet metal transfer press tool, scrap and finished-part paths should be planned before the lower die becomes crowded. Offcuts must clear cams and transfer equipment without rebounding into the working area. Embossed sheet material provides a smooth chute surface, and a pneumatic cylinder-driven vibrator can assist where scrap tends to bridge. At the last station, controlled dropping off is checked so the part does not strike a sharp edge or collect tool marks.
Please attach the die technical standards and press specification to the drawing package, which should contain both the 2D drawing and 3D drawing. Press spacing, transfer equipment, material data, volume, and inspection requirements help define the build. The review can then address operation split, service access, safety provisions, and the expected tryout work rather than relying on a generic scope. Site-specific safety or changeover rules should be supplied with the line data.
Certified Capability for Transfer Press Tooling
Transfer press tool projects are strongly affected by press-line limits, pickup clearance, sensor access, scrap flow, and station-to-station orientation. A certificate area can include IATF 16949 for automotive programs, ISO 9001, high-tech enterprise recognition, export operation qualification, and patents covering integrated cutting, forming, rolling, or workpiece-transfer mechanisms.
For the Transfer Press Tool page, the purpose of this module is to make supplier qualification visible beside the technical content. It shows that press matching, production-cycle planning, component selection, tryout records, and maintenance documentation can be handled under controlled procedures rather than treated as isolated workshop tasks.
