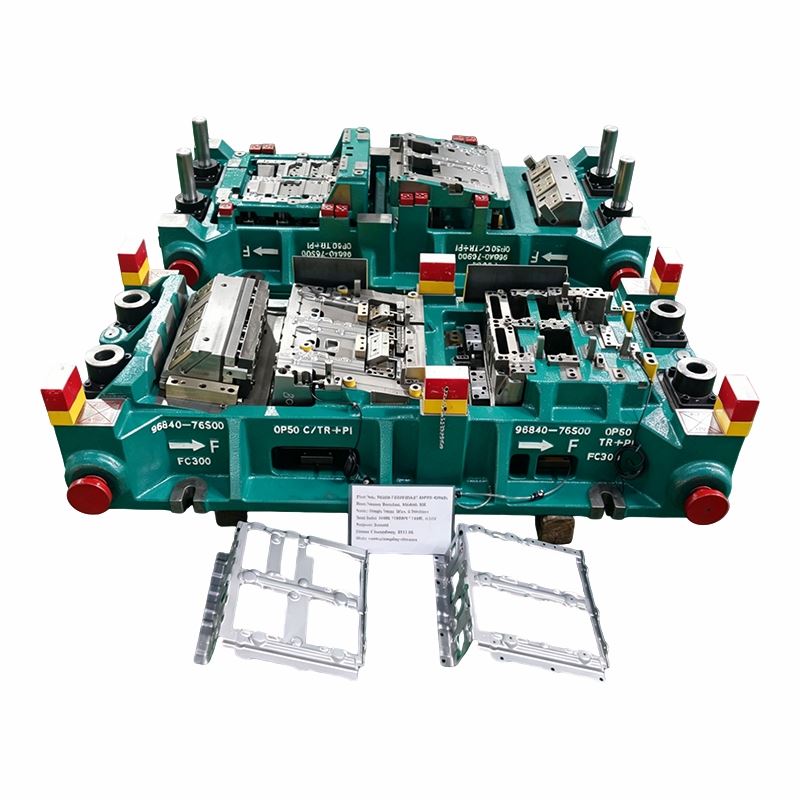

Transfer Stamping Die

A transfer die stamping process should give every station a clear task. Drawing, restriking, trimming, piercing, and flanging are arranged around material behavior and handling access, not simply the shortest theoretical route. For a transfer metal stamping die, the pickup area is considered while the intermediate shape is still being developed. A flange that looks unnecessary in the finished part may be useful as a temporary locator, while an early cutout may need to wait until the part is stiff enough to move.

A sheet metal transfer stamping die often deals with broad surfaces, deep walls, or asymmetric forms. CAE simulation can indicate thinning, wrinkling, and likely springback before machining, but the model must be checked against actual material data. Binder pressure, draw-bead position, corner radii, and lubrication influence the result. Sensitive surfaces should not become pickup zones. During tryout, engineers compare the intermediate profile and surface condition at each stage rather than correcting only the final panel. Lubrication strategy and blank-edge condition are also recorded because they can change draw behavior between tryout batches.

The Transfer Stamping Die should be adjusted in a controlled order. First confirm that the part lands on the locators without forcing; then review transfer timing, draw depth, trimming line, hole position, flange angle, and tool marks. A transfer forming stamping die may need a restrike station when springback cannot be managed reliably in the primary form. For stable output, the transfer stamping production die also needs clear scrap routes and sensors positioned where they can be serviced without disturbing the working area.

Send the 3D drawing together with a fully dimensioned 2D drawing. The press specification and die technical standards should accompany them. Material grade, thickness, annual demand, part-surface requirements, and the proposed handling equipment complete the review. With those facts, Changdong can assess the sequence and quotation on project-specific evidence. The quoted scope should state whether checking fixtures, spare inserts, and run-at-rate support are included.
