Metal Stamped Part

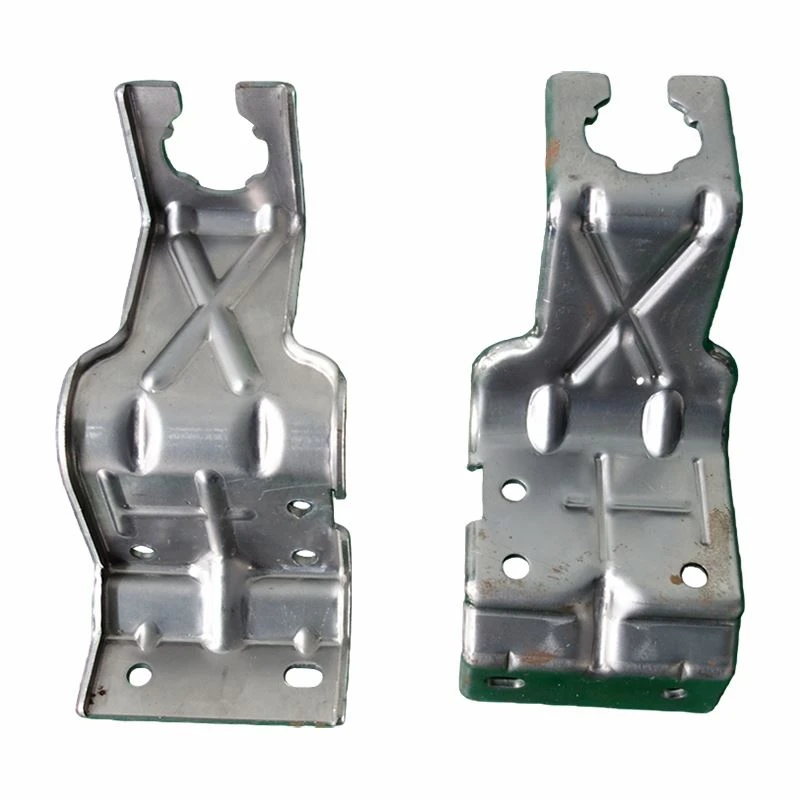

A formed stamped part of this type should be located from the features that matter in assembly, not from an easy blank edge that disappears later. The Metal Stamped Part may need blanking, piercing, pre-forming, final forming, and trimming in separate operations or in a compact progressive sequence, depending on volume. For an industrial stamped part, flange angle and hole position should be checked in a fixture that represents the heater and engine-side mounting points. Local reliefs may be needed where material gathers near a corner.

Although the bracket is compact enough to be described as a small stamped metal part, 2.5 mm CR4 places meaningful load on punches, guides, and die plates. Working steels and heat-treatment hardness should be selected for the required life and maintenance interval. Replaceable inserts help at cut edges and highly loaded bends. MISUMI components are a common option, with compatible alternatives from PUNCH INDUSTRY, Danly, Dayton, or FIBRO when dimensions and load ratings meet the customer standard. Die clamping and maintenance access should be planned before machining.

A precision formed part is approved from measured samples, not from appearance alone. Tryout records should cover the trimming line, hole position, profile, bend angle, flatness, burr direction, and tool marks. Compared with a thin metal stamped part, this gauge may need more attention to springback and press deflection. Changdong can review the Metal Stamped Part after receiving the 2D drawing, 3D drawing, die technical standards, press specification, annual volume, and inspection requirements.

The final tooling concept depends on demand and press availability. A progressive route can reduce handling, while separate operations allow easier adjustment and lower initial complexity. Whichever route is chosen, the bracket should keep the same functional datums through every nest. The quotation should state what is included in the trial, checking fixture, spare inserts, and sample submission.
