Stamping Component

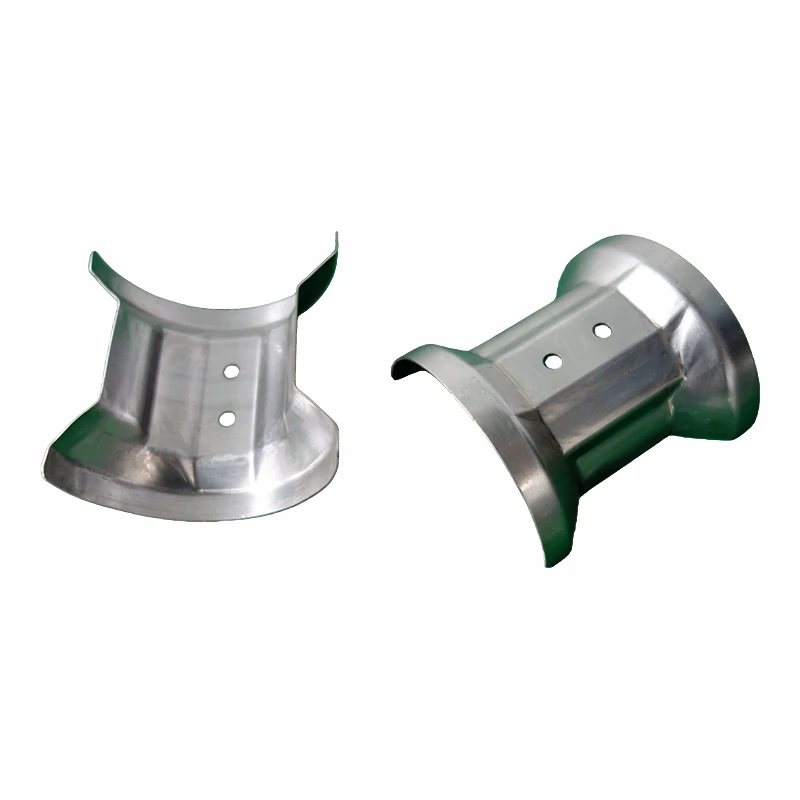

An industrial stamping component used near an exhaust system may include shallow draws, beads, flanges, mounting holes, and relief cuts. The formed stamping component should be evaluated against its final profile because a flat blank can look correct while the assembled shield rocks or contacts the pipe. SUS439MT can show springback after flanging, so restrike areas and locating datums should be planned around the features used at installation. Visible dents, scratches, and sharp edge rollover should be included in the sample standard.

Heat shields are often light enough to catch on a chute but stiff enough to spring back toward the die. A smooth dropping-off path reduces handling marks. Part and scrap chutes may use embossed sheet material, and a pneumatic cylinder-driven vibrator can be fitted where narrow offcuts tend to remain in the tool. For critical stamped components, sensors should monitor misfeed or scrap blockage before the next stroke. This process is different from electrical contact stamping, where contact resistance and spring force dominate the inspection plan.

The review package should include the 2D drawing, 3D drawing, die technical standards, press specification, annual volume, weld or fastening method, and any surface limits. Sample inspection can cover profile, hole position, trimming line, flange angle, flatness, burr height, and tool marks. If thermal expansion or assembly clearance creates a special tolerance, it should be marked directly on the drawing rather than left as a general note.

Stainless heat-shield work can polish the tool in some areas and pick up material in others. Working surfaces should be accessible for cleaning, and wear inserts should be replaceable without disturbing the complete die setting. The maintenance plan should also identify where burr growth or surface marking is first expected, so production can intervene before the shield begins to contact the exhaust assembly. Cleaning intervals should be based on actual marking trends seen during the capability run.
