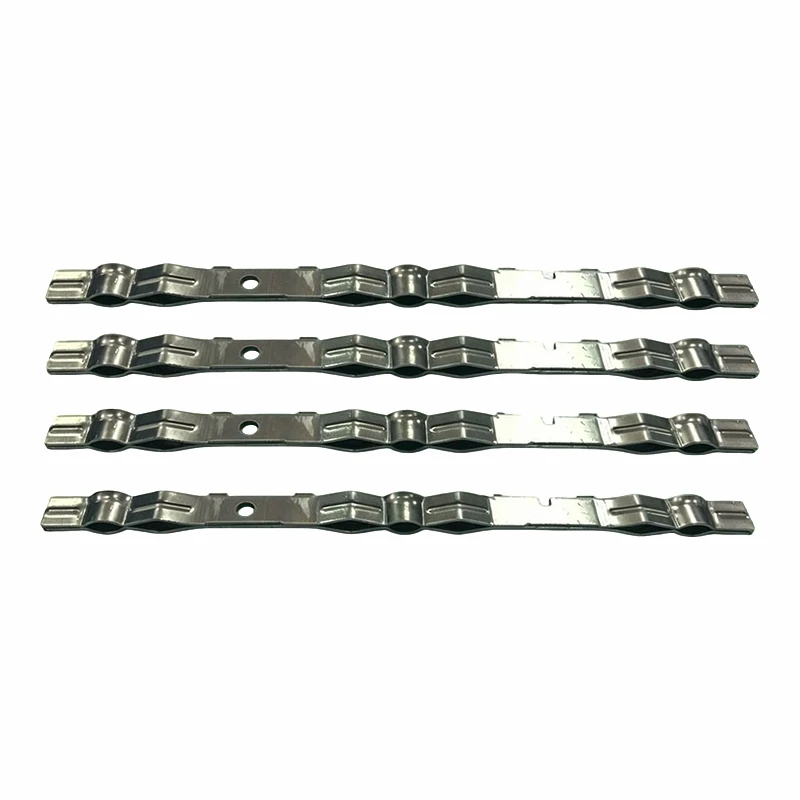

Progressive Metal Stamping Die

The strip layout determines whether progressive stamped parts remain square and whether contact slots keep their pitch. Pilot holes, carrier width, and the cut-off position need enough strength to survive forming without marking the functional area. Progressive stamping components should be oriented so burr direction and grain direction suit terminal insertion and spring action. Where several terminals leave one strip, progressive die stamped parts should be separated only after final forming and dimensional checks. Early stations should avoid creating weak bridges that twist before the terminal reaches its finished profile.

A Progressive Metal Stamping Die for phosphor bronze needs closely supported punches, controlled clearance, and replaceable inserts at the highest-wear cuts. Die steel and heat-treatment hardness should be selected from the required output and sharpening interval, not from a fixed recipe. MISUMI standard components are commonly used, while equivalent PUNCH INDUSTRY, SANKYO OILLESS, Danly, Dayton, or FIBRO items can be considered when they match the die technical standards. Sensor locations and maintenance access matter in long run progressive stamping because a small feed error can damage several stations in one stroke.

Tryout should begin with a slow trial strip. Progressive stamping production parts are then checked for pitch, hole position, bend angle, burr direction, contact width, and dropping off. The strip should be retained with station notes so later corrections are traceable. Before the Progressive Metal Stamping Die is released, buyers should confirm the 2D drawing, 3D drawing, die technical standards, press specification, expected annual volume, and any plating or conductivity-related inspection zones. These details allow the tooling team to set a realistic approval sample and maintenance plan.

Terminal tools benefit from a simple maintenance record tied to output quantity. Punch wear, guide condition, sensor checks, and sharpening dates should be recorded by station. When a contact dimension begins to drift, the team can then identify whether the cause is feed, wear, material temper, or a recent adjustment instead of correcting several stations at once.
