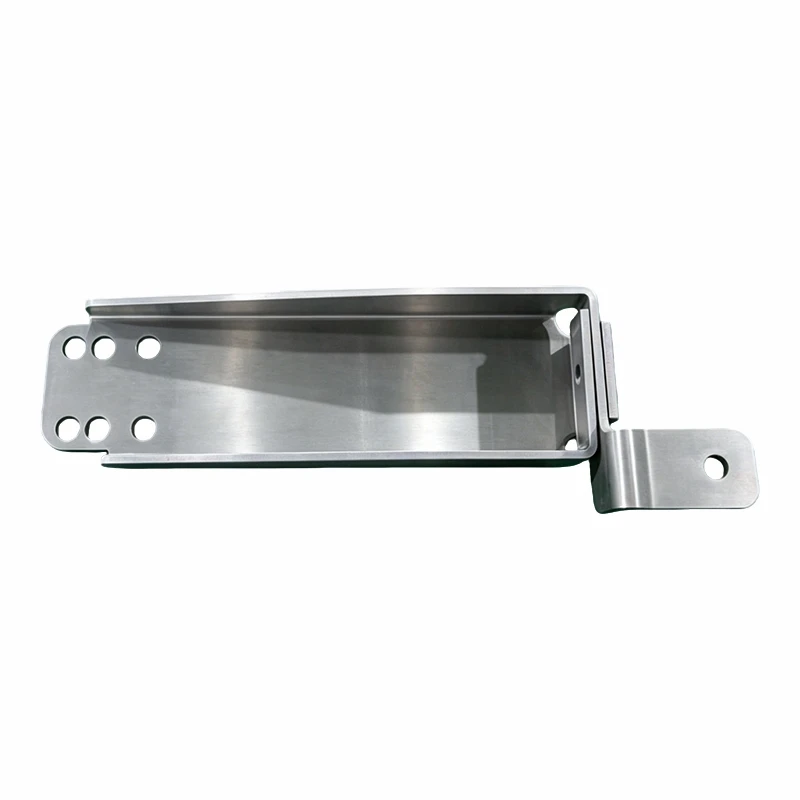

Sheet Metal Stamping Part

A Sheet Metal Stamping Part at 5.0 mm thickness may need separate blanking, piercing, forming, and trimming operations rather than a compact tool. Sheet metal stamped products in this range create high cutting load and heavy slugs, so shear angle, punch support, stripper force, and scrap removal deserve early attention. If bends are close to holes or edges, the sequence should prevent distortion and edge tearing. The blank and finished bracket should also have defined lifting or dropping-off points so operators and automation do not grip a functional surface.

Sheet metal press parts of this thickness require more than a tonnage check. The press specification should confirm energy, shut height, bolster area, die clamping, and off-center load. Sheet metal forming parts may spring back or twist if the die lacks guidance or if the blank is not seated consistently. The process differs from thin sheet metal stamping, but precision sheet stamping principles still apply to hole position, trim accuracy, and repeatable datum control. Working steels, heat treatment, and replaceable cutting inserts should be selected from the expected output and maintenance interval.

Inspection should cover profile, hole position, flange angle, flatness, trimming line, burr direction, edge cracking, and fixture fit. A measured first-off sample and a production-rate sample help separate setup variation from tool geometry. Changdong can review the Sheet Metal Stamping Part after receiving the 2D drawing, 3D drawing, die technical standards, press specification, annual demand, and assembly or welding information. These inputs are needed to decide whether a progressive, transfer, tandem, or staged single-operation route is practical.

Heavy blanks and slugs need a positive route out of the working area. Scrap chutes, bins, and any vibrator arrangement should be sized for the actual piece weight, not copied from a light-gauge tool. Lifting points and maintenance access should also be agreed before build, since cutting inserts and stripper sections may be too heavy for manual handling.
